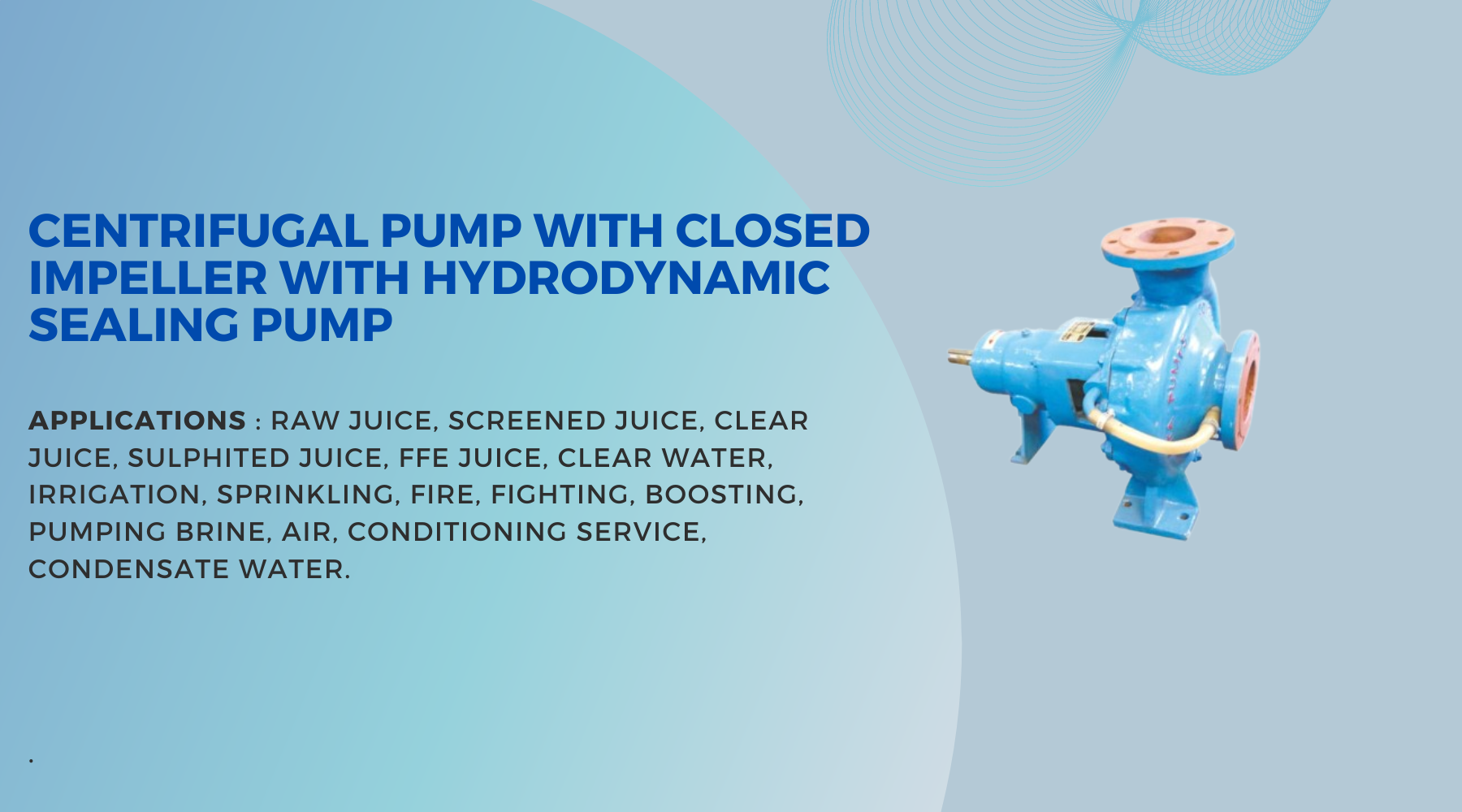

The Benefits/Advantages of Centrifugal Pump with closed Impeller with Hydrodynamic sealing Pump
Centrifugal pumps with closed impellers and hydrodynamic sealing systems offer several benefits and advantages in various industrial applications. Here are some of the key advantages:
- DESIGN FEATURES: Gita 'CD' Type pumps are end suction, backpull out horizontal shaft design manufactured as per din-24255.
- CASING: Centerline discharge, selfventing high efficiency volute type, having integrally cast suction and delivery nozzle as well as supporting feet.
- IMPELLER: Fully enclosed type, dynamically balanced impeller is designed to give high efficiency requiring low NPSH. Hydraulic balancing is done providing back vanes and balancing holes close to HUB.
- SHAFT: Liberally designed shaft is supported on Deep groove ball bearing lubricated by oil.
- SHAFT SEAL: Standard pumps are supplied with conventional packing type stuffing box. Mechanical seal with flushing liquid connection is optional. Water cooling can be provided for high temperature liquids.
- FLANGES: Drilling in flanges is provided as per Din, 2533/Din-2543/15,BS, ASA or ANSI as per customer's requirement.
- MATERIAL OF CONSTRUCTION: Pumps are available in C.I., Bronze, Stainless Steel or a combination of these and other special metals.
- INTERCHANGEABILITY: Considerable saving is made in spare parts inventory by using Gita 'CD' pumps. There are only 5 to 6 bearing bracket sub-assemblies to cover 40 models.
| Model CD |
| Pump Size |
32 to 300mm |
| Capacity |
upto 1000 M3/hr. |
| Head |
up to 150 Mtr |
| RPM |
1450 to 2900 |
