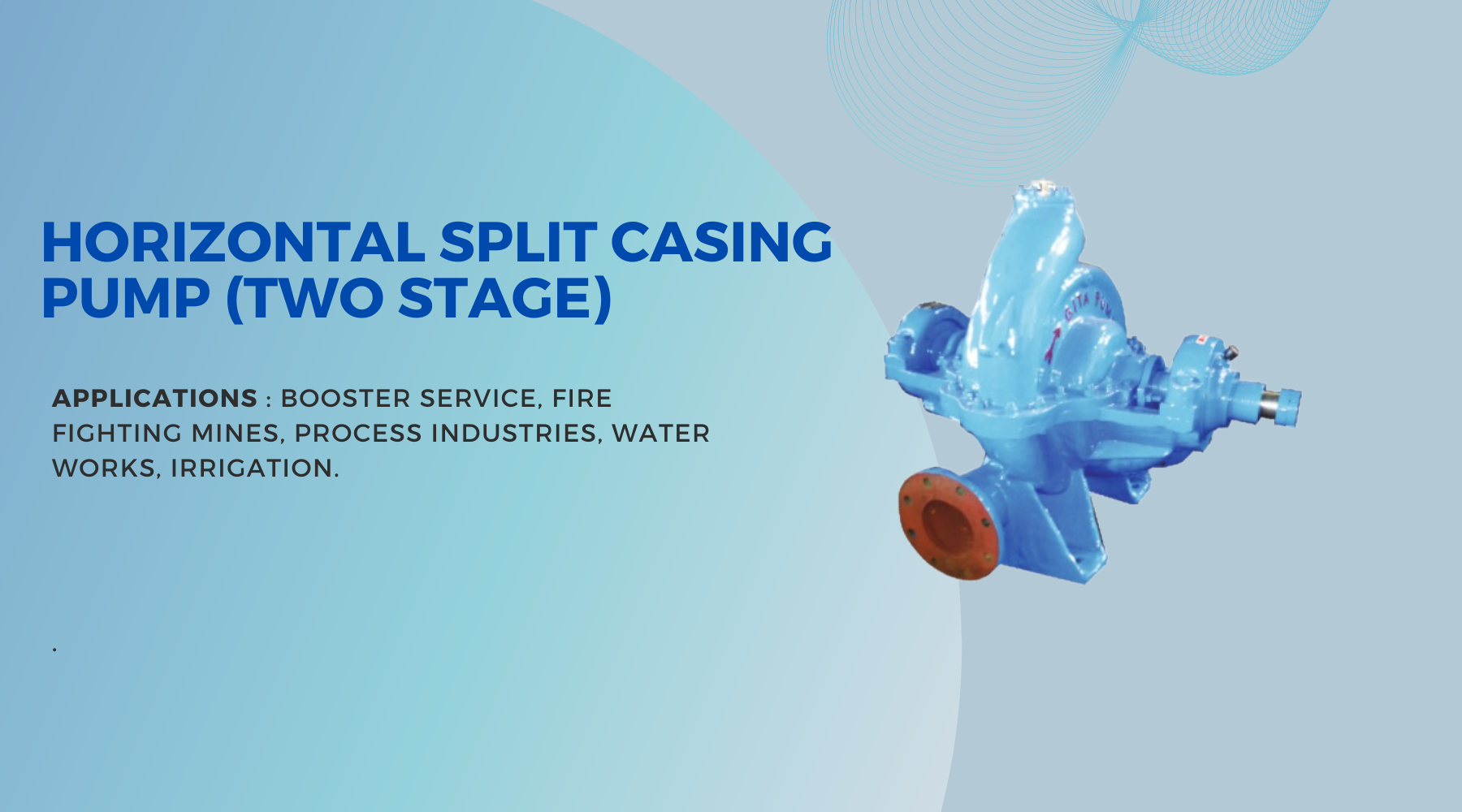

The Benefits/Advantages of Horizontal Split Casing Pump (Two Stage)
Horizontal split casing pumps, also known as split case pumps, offer several benefits and advantages in various industrial and municipal applications. Here are some of the key advantages:
- DESIGN FEATURES: Gita make ST pump are horizontal split casing, horizontal saft, two stage centrifugal pumps, They employ two single entry closed impellers, mounted on shaft with suction in opposite direction. This arrangement balances the end thrust hydraulically.
- RANGE OF SIZES:-These are primarily designed to run at 1440 RPM and available in sizes from 50 MM suction to 300 MM suction. Head ranges from 10 to 180 Meters and capacity from 2.5 to 230 liters per second.
- MATERIAL OF CONSTRUCTION:-Available in all iron Fitted, Bronze Fitted, Stainless steels Fitted construction or any other combination of metallurgy as per customer's specifications.
CONSTRUCTIONAL DETAILS:-
- CASING:-Close grained cast iron, split horizontally, lower half contains delivery and suction branches. Easy inspection by removing upper half and rotor assembly. Closed impellers, machined all over, internal passages smooth finished for high efficiency, dynamically balanced after assembling on shaft.
- IMPELLERS:-Closed impellers, machined all over, internal passages smooth finished for high efficiency, dynamically balanced after assembling on shaft.
- SHAFT:-Designed for maximum load with adequate factor of safely, accurately ground and finished, effectively protected from liquid to be pumped.
- IMPELLER NECK-RINGS:-Renewable neck rings are provided to keep suction improved, secured in casing bore by half spigot joint.
- BEARINGS:-Antifriction grease lubricated, heavy duty ball bearings capable of continuous operation.
| Model ST |
| Pump Size |
50 to 150mm |
| Capacity |
upto 500 M3/hr. |
| Head |
upto 180 Mtr |
| RPM |
1450 |
